These images below is what your stereo decoder should display on your

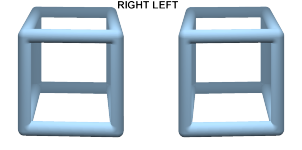

screen when decoding the "stereo_testing_image.png" stereoscopic image file
over a background filled with the "background_tile.png" image file.

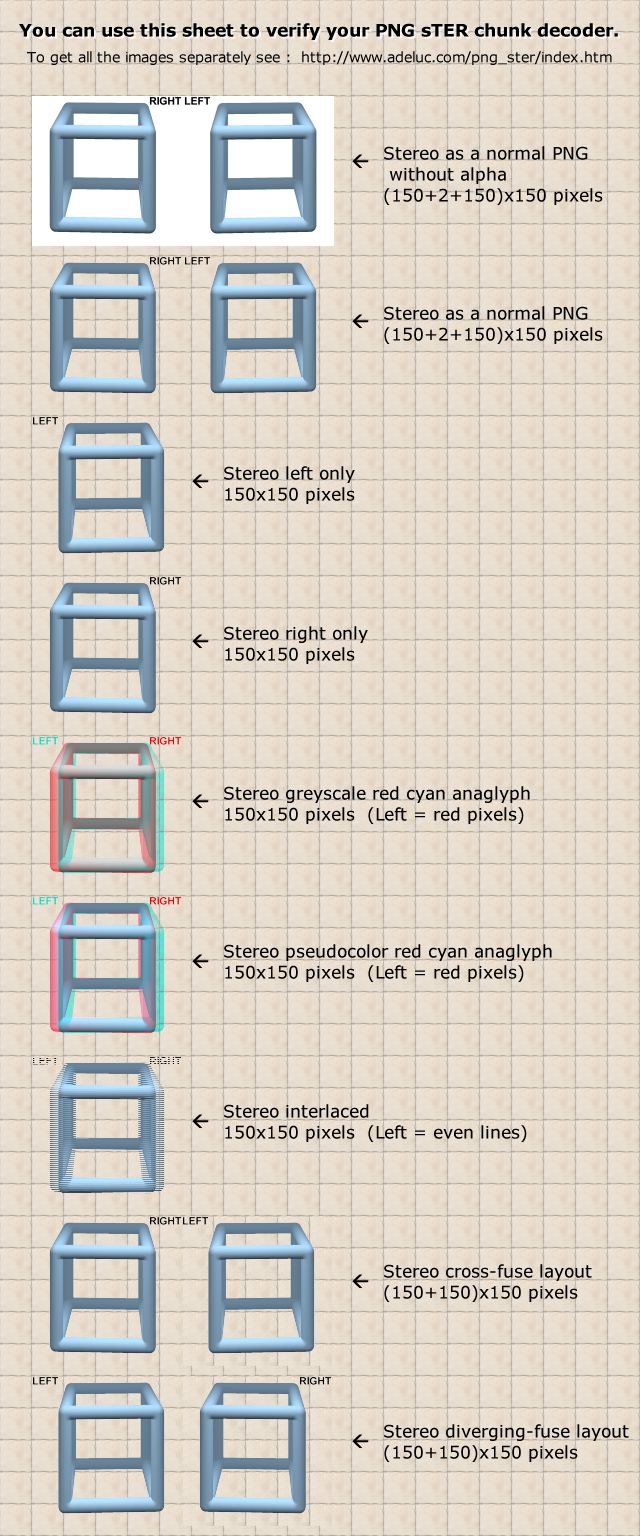

The "all_stereo_display_modes.png" image file contains all those images below.

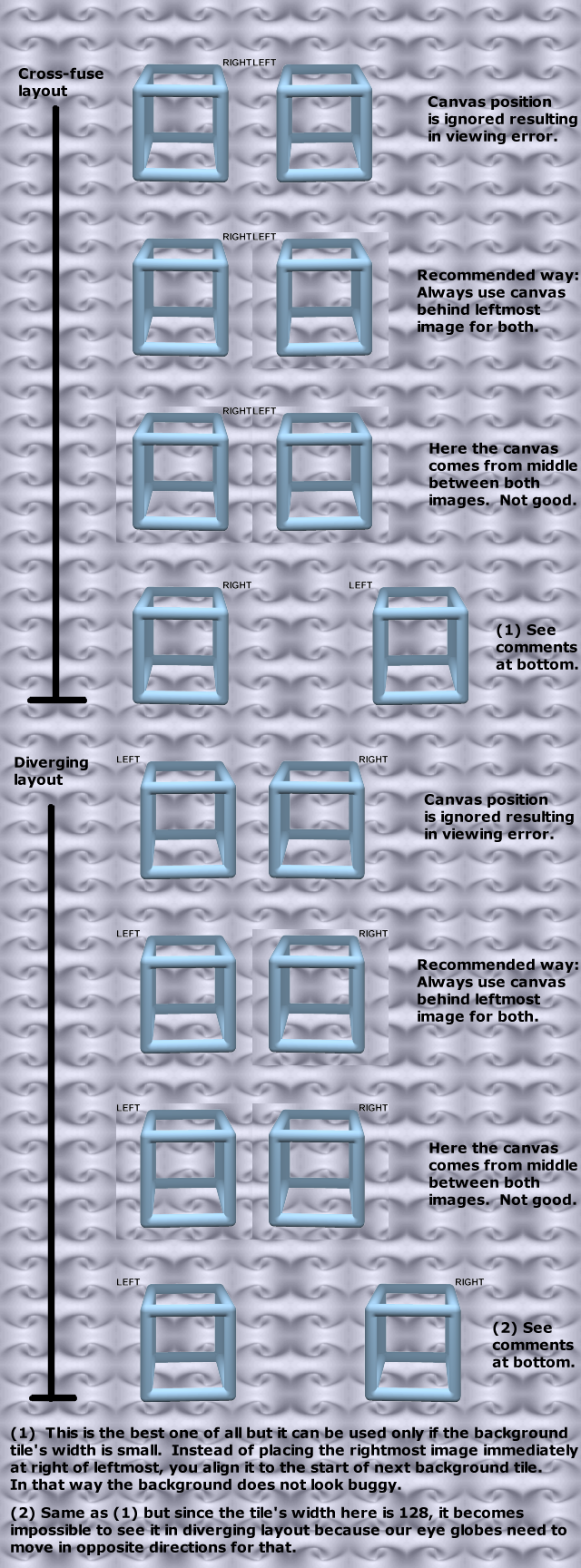

The "testing_stereo_cross_diverging_layouts.png" image file contains some tips about how to correctly display a stereoscopic image using the cross-fuse layout and the diverging layout techniques.

Stereo as a normal PNG without alpha   (150+2+150)x150 pixels Stereo as a normal PNG without alpha
(150+2+150)x150 pixels
"stereo_as_a_normal_png_without_alpha.png"

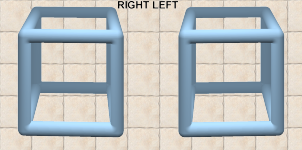

Stereo as a normal PNG   (150+2+150)x150 pixels Stereo as a normal PNG
(150+2+150)x150 pixels
"stereo_as_a_normal_png.png"
Stereo left only   150x150 pixels Stereo left only
150x150 pixels
"stereo_left_only.png"

Stereo right only   150x150 pixels

Stereo right only
150x150 pixels
"stereo_right_only.png"

Stereo greyscale red cyan anaglyph   150x150 pixels    (Left = red pixels)

Stereo greyscale red cyan anaglyph
150x150 pixels  (Left = red pixels)
"stereo_greyscale_red_cyan_anaglyph.png"

Stereo pseudocolor red cyan anaglyph   150x150 pixels   (Left = red pixels)

Stereo pseudocolor red cyan anaglyph
150x150 pixels  (Left = red pixels)
"stereo_pseudocolor_red_cyan_anaglyph.png"

Stereo interlaced   150x150 pixels  (Left = even lines)

Stereo interlaced
150x150 pixels  (Left = even lines)
"stereo_interlaced.png"

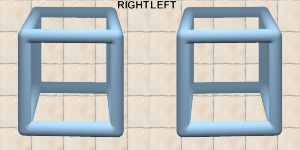

Stereo cross-fuse layout   (150+150)x150 pixels

Stereo cross-fuse layout
(150+150)x150 pixels
"stereo_cross_fuse_layout.png"

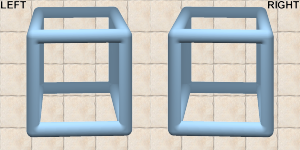

Stereo diverging-fuse layout   (150+150)x150 pixels

Stereo diverging-fuse layout
(150+150)x150 pixels
"stereo_diverging_fuse_layout.png"
